Full-color high-transparent LED display is a new generation of LED display products. It can ensure the color richness and display details of the dynamic picture without affecting the lighting and aesthetics of the installation location.
It is designed with a cabinet size of 1000X500 1000×1000, and can be spliced into any shape of the display screen in any direction and any size. At the same time, the standard display size design makes the displayed images uncompressed, clear and true, presenting perfect visual effects, simple installation, bright colors, and has become the preferred LED display product for glass windows! Infinite creativity, leading the trend!

Product Description

Full-color high-transparent LED display is a new generation of LED display products. It can ensure the color richness and display details of the dynamic picture without affecting the lighting and aesthetics of the installation location.
It is designed with a cabinet size of 1000X500 1000×1000, and can be spliced into any shape of the display screen in any direction and any size. At the same time, the standard display size design makes the displayed images uncompressed, clear and true, presenting perfect visual effects, simple installation, bright colors, and has become the preferred LED display product for glass windows! Infinite creativity, leading the trend!






Specifications


Product parameters: transparent screen 100*500/1000*1000 cabinet

P2.6-5.2

P3.9-7.8

P10.4

P15.625

物理间距mm

2.6-5.2

3.9-7.8

10.4

15.625

像素密度(点/㎡)

73728/m²

32768/m²

9216

4096

模组尺寸mm

500*125

500*125

500*125

500*125

模组分辨率

192*24

128*16

48*12

32*8

箱体分辨率

384*96

256*64

96*96

64*64

扫描方式

7S

7S

2S

静态

箱体重量

7KG

7KG

9KG

9KG

颜色

红、绿、蓝各≥14bit

红、绿、蓝各≥14bit

红、绿、蓝各≥14bit

红、绿、蓝各≥14bit

对比度

3500:1

4000:1

4000:1

4000:1

亮度(nits)

4500cd/m²

4500cd/m²

4500cd/m²

4500cd/m²

刷新率 (Hz)

3000

3000

3000

3000

通透率

85%

85%

75%

75%

水平视角

120

120

120

120

垂直视角

120

120

120

120

平均功耗

300-500W

300-500W

300-500W

300-500W

最大功耗

1000W

1000W

1000W

1000W

寿命

> 100,000Hrs

> 100,000Hrs

> 100,000Hrs

> 100,000Hrs

维护方式

前后维护

前后维护

前后维护

前后维护

IP等级

IP31

IP31

IP31

IP31

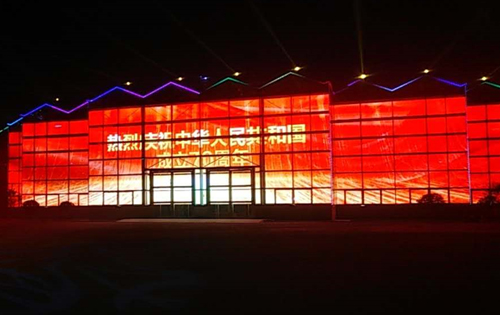

Cases
